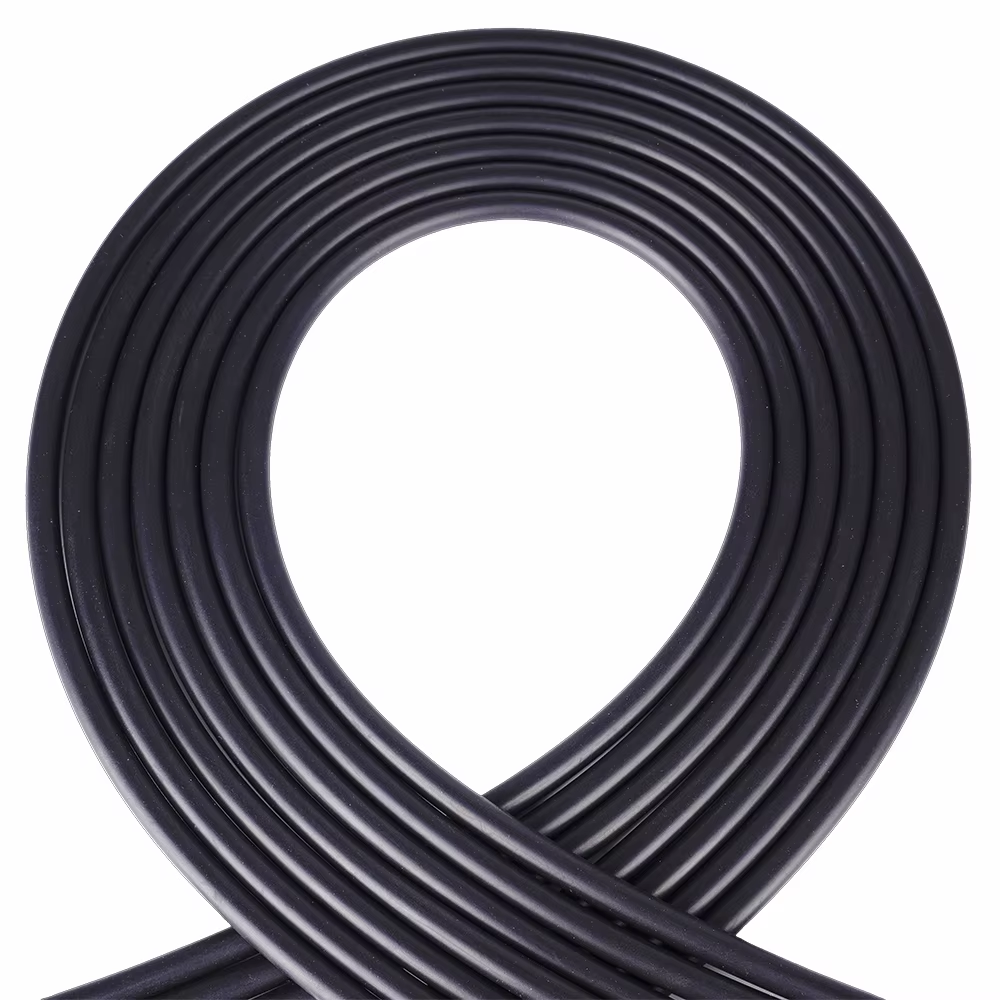

1'' Non-Conductive EPDM Cooling Hose
Description:
EPDM Rubber Hose is a versatile and durable hose designed for use in various industrial and agricultural applications. It is made from EPDM (Ethylene Propylene Diene Monomer), a type of synthetic rubber known for its excellent resistance to weather, ozone, heat, and chemicals.
Applications: It's used to transport propylene glycol antifreeze, cooling water, air, and inert gas in data centers, induction furnaces, EV charging systems, medical equipment, and industrial cooling units.
Features: The hose is highly resistant to abrasion highly insulated and wide range of temperature resistance; It also has a certain degree of corrosion resistance and can transport some chemical reagents
Flexibility: Its flexibility and resistance to wear make it suitable for delivering fertilizers, acids, and general-purpose air and water tasks
Product Parameters:
| 1'' Non-Conductive EPDM Cooling Hose |
| Application | It's used to transport propylene glycol antifreeze, cooling water, and air, and inert gas in the data center, induction furnace, EV charging system, medical equipment, and industrial cooling unit. |
| Color | Black, Red, Green, or Customized |
| TEMP. Rang | -40ºC~100ºC / -40ºF~+210ºF |
| Inner Diameter | 1'' (25.4mm) |
| Certifications | CE & RoHS approved. |
| Standard | BS EN ISO 6134; HG/T2184 |
| Material | High quality EPDM Synthetic Rubber |
| Reinforcement | High tensile fiber braided |
| Length | 50/100 meters/roll |
| Specific Parameters |
| Part Number | I.D | O.D | Max W.P. | Min B.P. | Min Bend Radius | Weight |
| NO. | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/meter |
| PI-13 | 1/2 | 12.7 | 0.83 | 21.0 | 300 | 20 | 900 | 60 | 6.61 | 168 | 0.38 |
| PI-16 | 5/8 | 16.0 | 0.94 | 24.0 | 300 | 20 | 900 | 60 | 7.56 | 192 | 0.51 |
| PI-19 | 3/4 | 19.0 | 1.14 | 29.0 | 300 | 20 | 900 | 60 | 9.13 | 232 | 0.65 |
| PI-25 | 1 | 25.4 | 1.40 | 35.5 | 300 | 20 | 900 | 60 | 11.18 | 284 | 0.90 |
| PI-32 | 1-1/4 | 31.8 | 1.77 | 45.0 | 150 | 10 | 435 | 30 | 14.17 | 360 | 1.38 |
| PI-38 | 1-1/2 | 38.1 | 2.05 | 52.0 | 150 | 10 | 435 | 30 | 16.38 | 416 | 1.70 |
| PI-51 | 2 | 50.8 | 2.56 | 65.0 | 150 | 10 | 435 | 30 | 20.47 | 520 | 2.20 |
Applications:
For the transfer of air, water, light oils, and chemicals. The black nitrile tube is non-conductive, with minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.
It's used to transport propylene glycol antifreeze, cooling water, air, and inert gas in the data center, induction furnace, EV charging system, medical equipment, and industrial cooling unit.
Advantages:
1. No bulge
2. Anti-kink
3. Non Conductive
4. High Flexibility
5. Wear Resistance
6. Aging Resistance
PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!
PASSION FOR HOSE, PASSION FOR YOU!
