Nitrile Soft Wall Fuel Dispensing Hose With Built In Static Wire For Gasoline
To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.
We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.

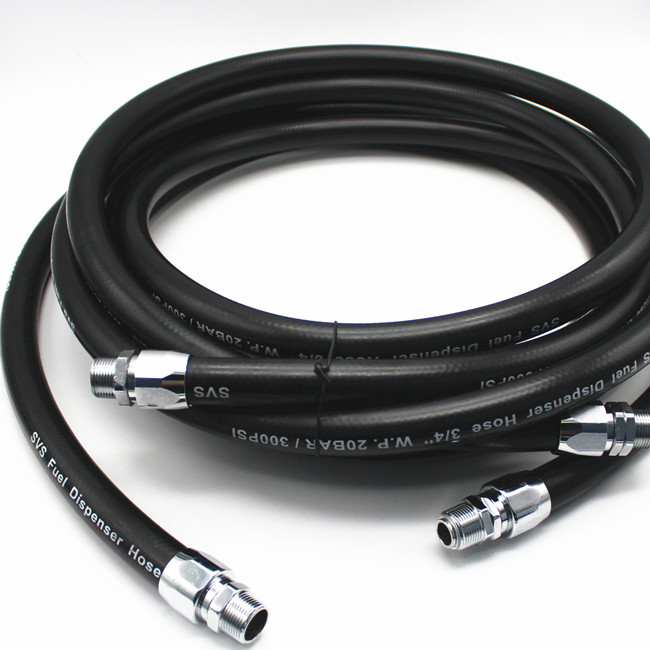

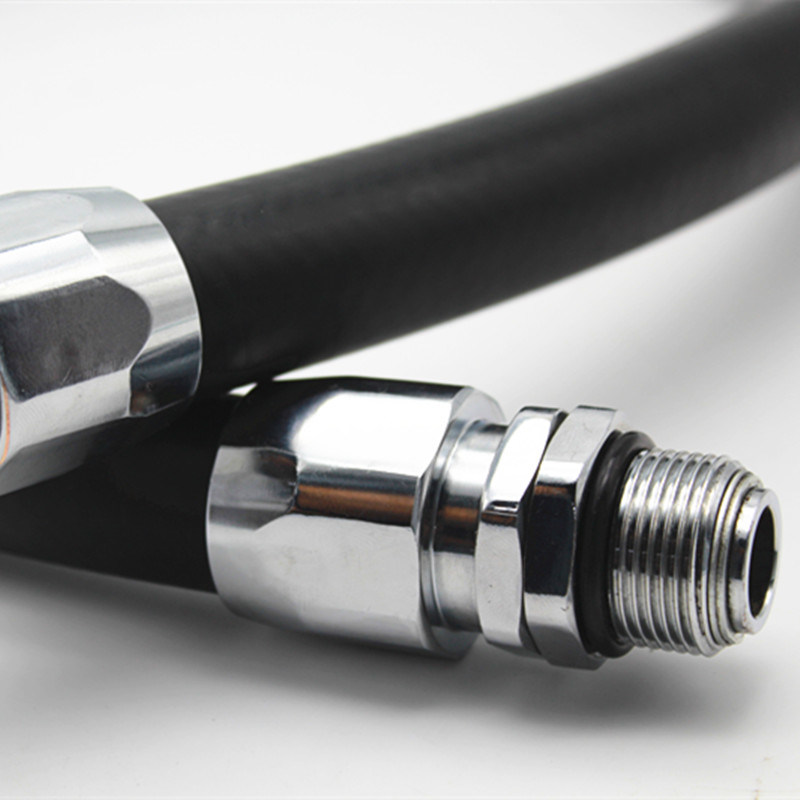

Nitrile Soft Wall Fuel Hose with Built-in Static Wire for Dispensing Gasoline
Hose Constructure:
Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: NBR
Temperature: -40℃ to +80℃
Color: Black, Yellow, Red, Blue, Green or according to your needs.
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 20m, 50m (Random Length in roll); 4meters, 6meters, 8meters, 10 meters in pieces......
Superiority: Very Good Flexibility, will not get hard easily even after using for a long; Strong ageing resistance; Not easy to creak even under high environment temperature; Good gasoline resistance; Excellent anti-static electricity; Safe; At the same quality level as Good year.
Quality warranty: The Quality warranty for our Hose is 12months.
But in real application, if you use it under correct conditions, there's no problem to use for 24months.
Specifications
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| | inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| HPR-1 | 5/8’’ | 15.9 | 25.4 | 30 | 450 | 120 | 1740 | 50 | 0.07 | 0.57 |
| HPR-2 | 3/4’’ | 19 | 28 | 30 | 450 | 120 | 1740 | 50 | 0.08 | 0.65 |
| HPR-3 | 1’’ | 25 | 35.5 | 30 | 450 | 120 | 1740 | 50 | 0.124 | 0.82 |
Why Fuel Dispenser Hose can not be replaced by normal Hydraulic Hose (Such as SAE
100R1)?
| Fuel Dispenser Hose: | Normal Hydraulic Hose: |
| NBR content: 42% | NBR content: 33% |
| Inner Rubber: Thicker | Inner Rubber: Thinner |
| More Flexible | Less Flexible |
High NBR content, thicker inner tube and special formular make fuel dispenser hose strongly resist gasoline / alcohol blends gasoline;
Normal hydraulic hose is for petroleum base hydraulic fluids, it is not suitable for gasoline / alcohol blends gasoline.
If clients use normal hydraulic hose to replace fuel dispenser hose and use them in service station, the life time will be largely shortened.
Why Choose Hangzhou Paishun ?
Our most ozone-resistant hose is the best selling hoses in China market.
- Extraordinarily resistant to ozone cracking, aging and ware.
- Cover retains colors better with higher gloss.
- Multi-fuel dispensing hose requires less inventory.
- Quality hose construction, quality assembly.
Advanced Compounding PVC / Rubber Outer Tube: The revolutionary new rubber / pvc compound material that is incredibly ozone-resistant, colorfast and unlike anything ever seen in the petroleum dispensing hose industry. And also the appreance looks nicer.
