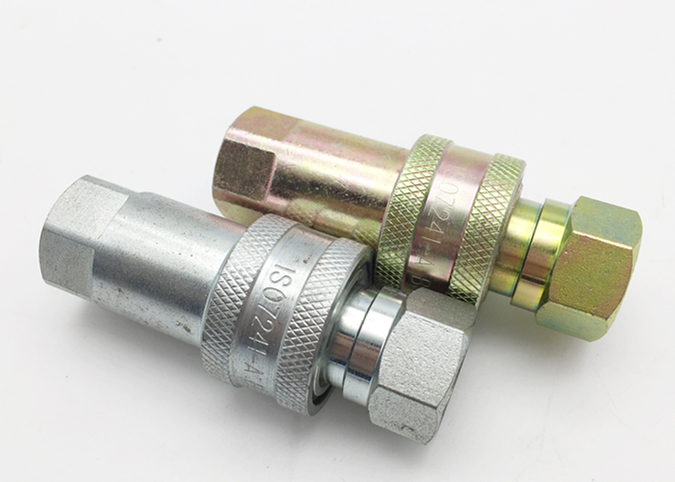

Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings

Name: Coupling ISO 7241 A Quick Connect Hydraulic Hose Fittings Hydraulic Quick Connect Fittings
Brand: PASSION
Price: 1 USD

China Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings wholesale

Brand Name : PASSION

Model Number : ISO7241-A

Certification : CE, ISO 9001:2008

Place of Origin : Zhejiang, China

MOQ : 500 pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 10000 pcs per week

Delivery Time : 29 days after payment

Packaging Details : By carton boxes and wooden pallets

Type : Close Type Hydraulic Quick Coupler

Material : Carban Steel

Temperature : -20℃ ~ +80 ℃

Size : 1/4" to 1"

Color : Yellow or White

Thread : NPT / BSP

Seal : Viton or other types of rubber

Part No. : ISO7241-A

Compatibilty : Parker 6600

Contact Now

Hydraulic Quick Coupling ISO 7241-A

Features

1. The H001 Series hydraulic quick couplings are mainly used for construction equipment, forest equipment, hydraulic machinery and oil equipment and other required hydraulic applications.

2 Poppet valves are available to prevent uncoupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.

3. Critical parts are hardened for durability.

4 H001 series conforms to the standard of ISO7241-A

5 Compatible with PARKER 6600 Series, FASTERANV Series AEROQUIP 5600 Series, and HANSEN HA
15000 Series.

Specification of Product

SPECIFICATIONS
Body Size (in)	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Rated Pressure(PSI)	5000	4000	4000	3000	3000	3000	2000	2000
Rated Flow(GPM)	3	6	12	28	50	88	220	224
Temperature Range(STD Seals)	-20°C ~ +80°C
Standard Seal Materials	Fluorocarbon

Hydraulic Quick Coupler ISO 7241A Series - Owen Ha...

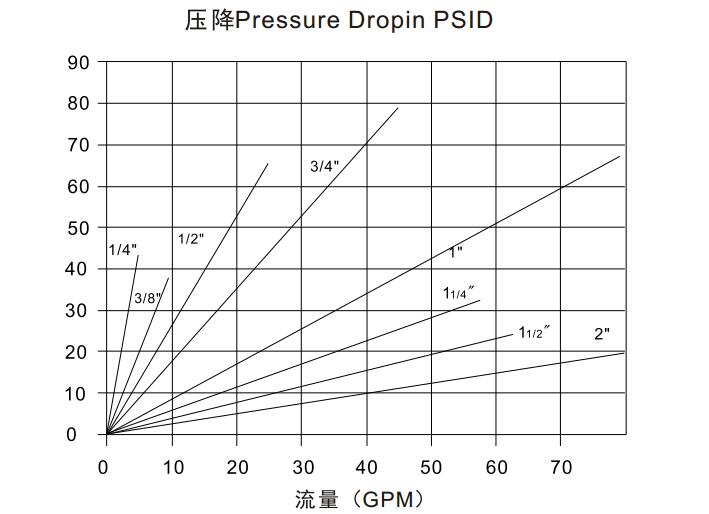

Pressure Drop-in PSID

Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings

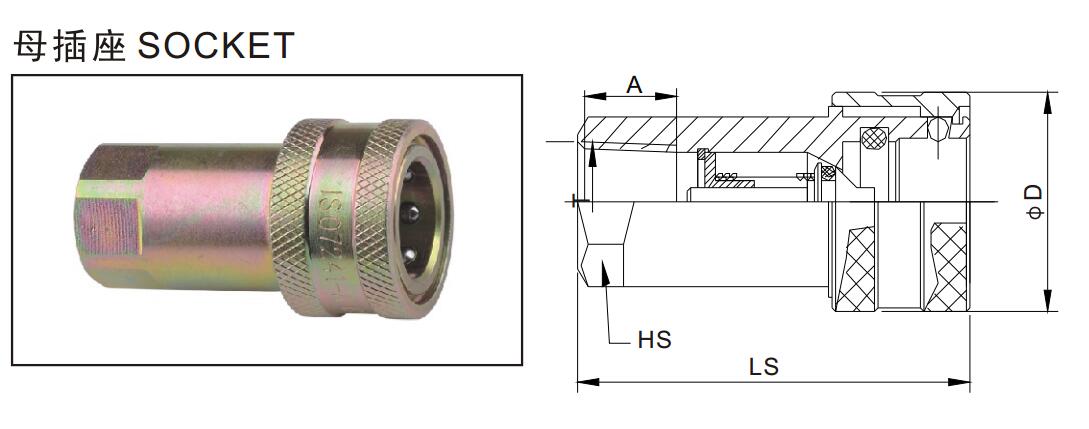

Part No.	LS	φD	HS	A	T
H001-02SF	50	26	19*6	13	G1/4 NPT1/4
H001-03SF	56	31.5	22*6	14	G3/8 NPT3/8
H001-04SF	66	39	27*6	16	G1/2 NPT1/2
H001-06SF	80	48	34*6	18	G3/4 NPT3/4
H001-08SF	94	58	41*6	21	G1 NPT1
H001-10SF	112	69	50*6	25	G1-1/4 NPT1-1/4
H001-12SF	127.5	84.5	60*6	25.5	G1-1/2 NPT1-1/2
H001-16SF	158	99	75*6	26	G2 NPT2

Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings

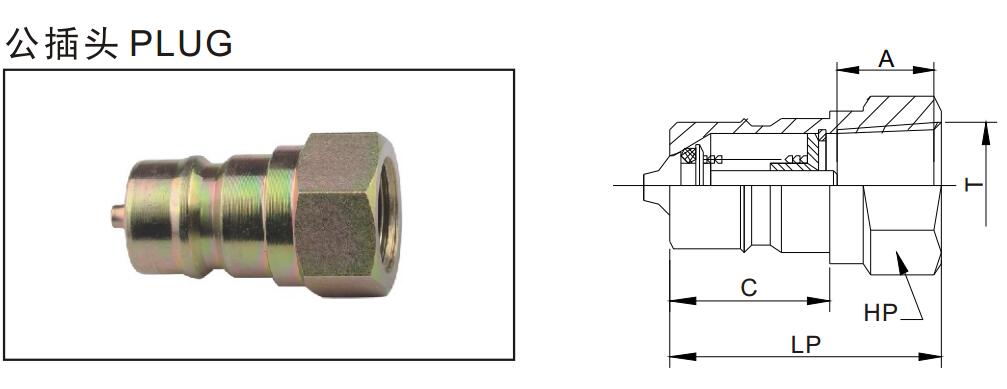

Part No.	LP	C	HP	A	T
H001-02PF	35.5	14.5	19*6	13	G1/4 NPT1/4
H001-03PF	36.5	21.5	22*6	14	G3/8 NPT3/8
H001-04PF	43.5	27	27*6	16	G1/2 NPT1/2
H001-06PF	57	28	34*6	18	G3/4 NPT3/4
H001-08PF	59.5	36	41*6	21	G1 NPT1
H001-10PF	70	69	50*6	25	G1-1/4 NPT1-1/4
H001-12PF	78	84.5	60*6	25.5	G1-1/2 NPT1-1/2
H001-16PF	98	99	75*6	26	G2 NPT2

Picture of Product

Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings

Packing and Shipping

We ship the goods by express, by air, by sea or according to your requirement.

Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings

PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!
